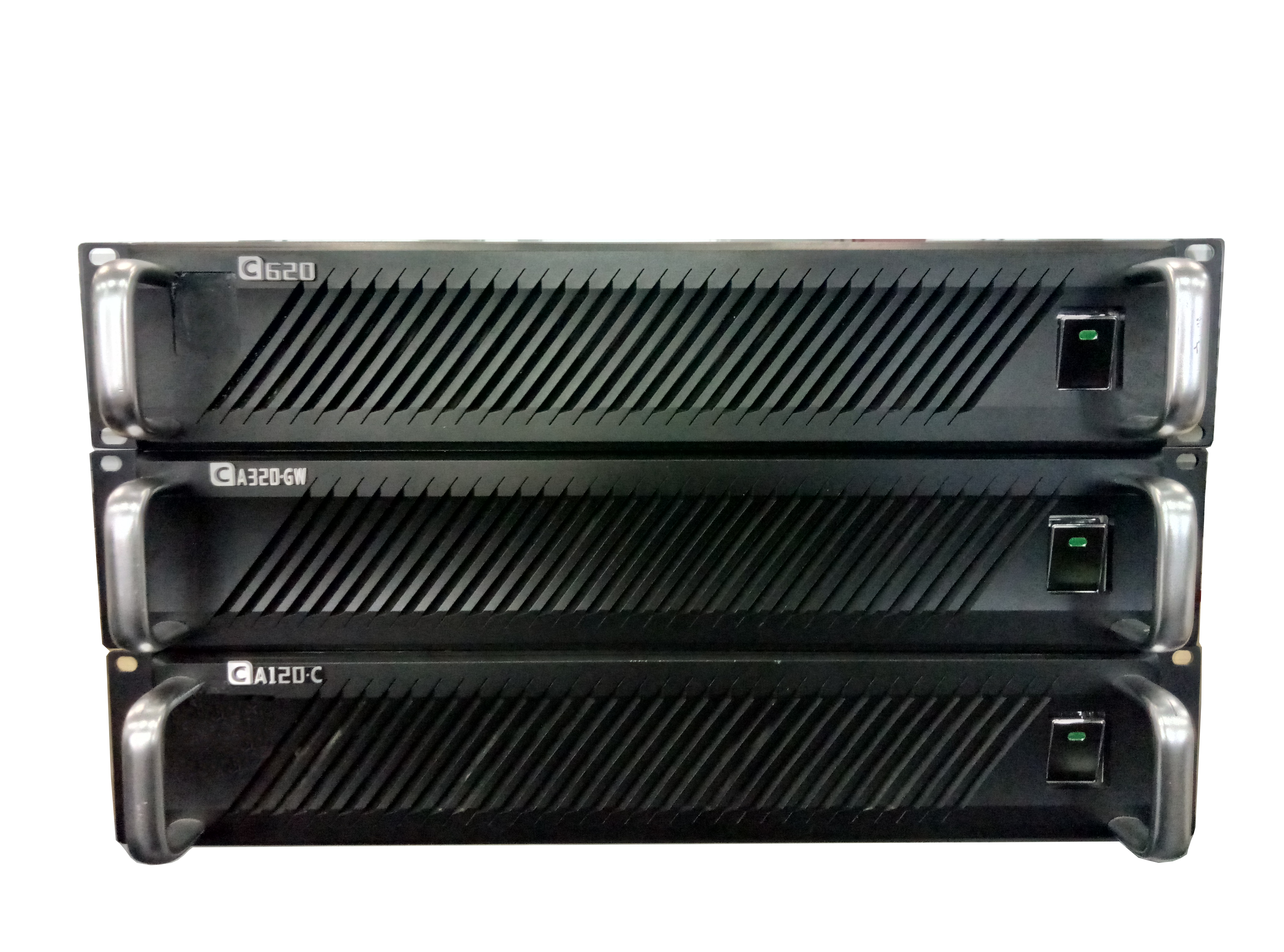

A multi-band (2G/3G/4G) mobile IMSI interception and tracking system deployed in vehicles
Advanced Mobile Terminal Tracking Solution
This vehicle-mounted IMSI catcher system utilizes core GSM, WCDMA, and LTE base station technologies to implement communication control over mobile terminals within its coverage area. The system captures IMSI/IMEI data and provides accurate terminal location capabilities.
System Components & Operation
The complete system includes a main unit, antenna array, battery pack, and hand-held signal strength indicator. The main components are installed in an SUV (main unit and battery in the trunk, antennas on the roof) and controlled via a mobile application for intuitive operation.
When the system successfully captures a target, the app provides continuous, stable readings and precise directional information. Operators can use the hand-held signal strength indicator to refine detection and pinpoint the exact location of target terminals.
System Configuration
| No. | Component | Specifications | Quantity | Remarks |
| 1 | Main Unit | Bands: GSM:900M/1800M, WCDMA:2100M, LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 (customizable)
Bandwidth: 5 MHz
Synchronization: GPS and public network
Sensitivity: < -102 dBm
Range: 0-1000m
Power: 20W/channel (10 channels)
Dimensions: 484*474*88mm
Weight: 16kg | 2 units |
|
| 2 | Signal Strength Indicator | Bands: GSM/WCDMA/LTE (customizable)
Power: 2.5W
Dimensions: 186*106*21mm
Weight: 0.5kg (with accessories) | 1 unit |
|
| 3 | Shark Fin Antenna | Frequency: 700MHz-2700MHz
Gain: 1.0-4.0 dBi
VSWR: ≤2.0
Dimensions: 200*120*110mm
Weight: 0.3kg | 3 units |
|
| 4 | Direction-Finding Antenna | 4-direction capability
Roof box integration compatible | 1 unit | Optional |
| 5 | Battery Pack | Type: Lithium iron phosphate
Capacity: 52Ah
Input: 10.4V-16V DC/320W
Output: 220V±10%/50Hz/3000VA
Dimensions: 500*440*134mm
Weight: 28kg | 1 unit |
|
| 6 | Operation Terminal | Windows laptop or tablet | 1 unit | Included |
| 7 | Accessories | Industrial router, Ethernet cable, power cables, GPS antenna, power strip | 1 set |
|
